1.28寸240*240可定制串口屏旋鈕屏智能家電工業檢測車載中控顯示
尺寸:0.9寸、1.28寸、1.43寸、1.6寸、1.8寸、2.1寸、2.76寸
分辨率:240*240
應用行業:適用于智能家居調光溫度控制設備、工業醫療控制設備、智能車載中控顯示、烤箱、咖啡機、加濕器、空氣炸鍋等等
| 1.28寸 塑料 旋鈕屏 銀色外殼 | 尺寸 | SIZE | 1.28寸 |
| 分辨率 | Resolution | 240*240 | |
| 顯示區尺寸 | Display area | 32.40*32.40mm | |

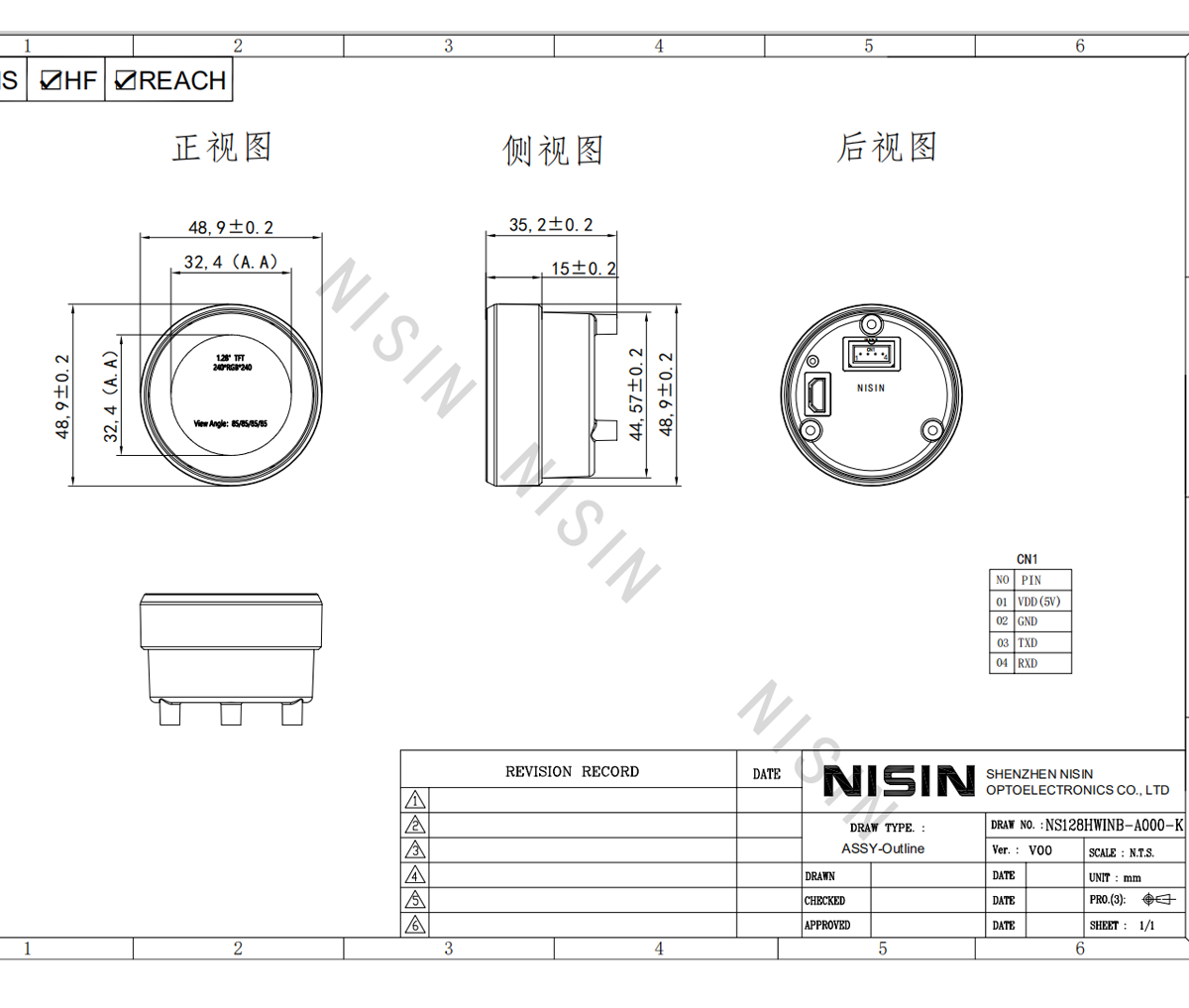

| 產品外形尺寸 | LCM Dimensions | 48.90*35.20mm | |
| 顯示點間距 | Dot Pitch | 0.135mmX0.135mm | |
| 顯示色彩 | color | 262K | |
| 對比度 | Contrast Ratio | 900 | |
| 響應時間 | Response time | 35MS | |
| 亮度 | Brightness | 250Cd/㎡ | |
| 視角 | View Angle | 全視角 | |
| 觸摸類型 | TP Type | ON | |
| 接口方式 | Interface | TTL UART | |
| 升級方式 | Upgrade method | USB | |
| 外殼材質 | Shell material | 塑料 | |
| 功能選擇 | Feature Selection | 旋鈕+按壓 | |
| 工作溫度 | Operating temperature | -10℃~+60℃ | |
| 儲存溫度 | Storage temperature | -20℃~+70℃ | |
| UI平臺 | UI Platform | LeveTop | |
| 是否支持定制 | customization | 是,軟件,顏色,外形 |
